COFDM EXPERT Mobile Video Wireless Communication
9 Years
| Ask Lasest Price | |
| Brand Name : | Kimpok Technology / OEM |
| Model Number : | KP-12TX10W |
| Certification : | EC/FCC/ROHS |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, PayPal |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 3-7 days |

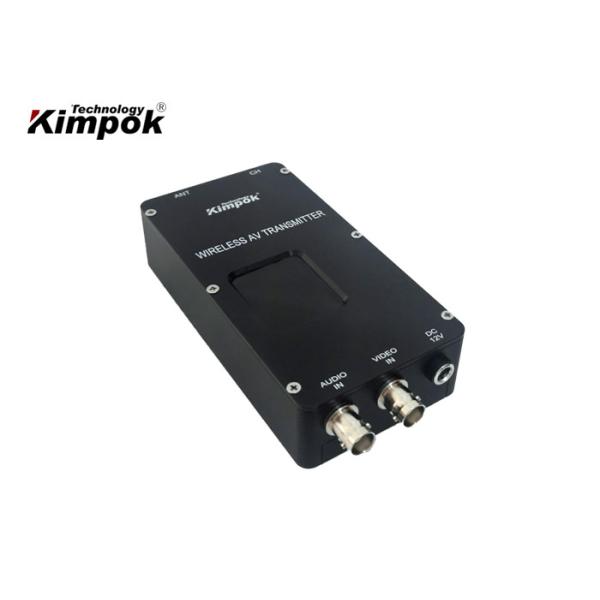

1.2Ghz Wireless Video Transmitter and Receiver with 10 Watt Security Transmission
Tx Specification:
| Model | KP-12TX10W |
| Voltage | 12V DC |
| Current | 2A |
| Frequency | 1.2 GHz |
| Number of channels | 4 Channels |
| Frequency band | 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz |
| Transmit Power | 10 watt |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance | 3~5km LOS on ground, 30km from air to ground |
| Dimensions (L * W * H) | 150*65*30mm |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 200g |
| Accessories | Transmitter, AV cable, high gain antenna |
| Frequency | 1.2 Ghz |
| Channel | 8 channels |
| Frequency band | 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz |
| Working voltage | DC 12V |
| Current consumption | 260mA |
| Weight | 90g |
| Size | 120*60*20mm |
| Accessories | receiver, antenna, AV cable |
Features:
1. Using FM mode, anti-interference ability, good image quality;
2. Image, audio sync, color black and white compatible;
3. Small size, light weight, easy to carry, good installation;
4. Responsive, timely, send and receive real-time transmission;
5. Wireless transmission: no need to set up communications cable;
6. Highly integrated, stable and reliable transmission distance;
7. DC power supply, easy to use;
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Application:
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
